| Characteristics |
 |
|
|
• Using TSMC’s 40nm uLP eFlash Internet of Things state-of-the-art technology
• Achieve 1uA power consumption under timed sleep
• Realize 0.7uA timing sleep current under extremely low core voltage
• 500ms connection status 30uA
• The products are benchmarked against the most advanced international products, including Nordic52840
• Support QFN4x4/5x5 package
• Support WLCSP encapsulation.
• Full-spec 5.1: LR, 2Mpbs, AdvExt, AoA, AoD.
|
• Full specifications: extended broadcast, periodic broadcast, multi-broadcast set, CTE, etc.
• Full function: multi-role multi-connection multi-state concurrency, support scatternet, support Mesh
• Highly optimized: data is copied only once from app to RF
• Customizable: number of connections, number of broadcast sets
• Cross IDE: Keil/IAR/SEGGER/Gnu/…
• Cross-language: C/C++/Nim/JavaScript (planned)
• Cross-platform: Windows/Linux/MacOS
• Easy to use: graphical project wizard, data editor
|
|
| ★It has the same or higher performance characteristics as foreign products, has lower cost, and can replace and surpass foreign high-end chips |
||
| Part Number | BLE Stack | Sensitivity | (dBm)? | Core | Vdd | RAM | ROM | GPIO | ADC | Download |
|---|---|---|---|---|---|---|---|---|---|---|

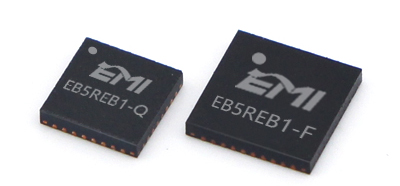

| EB6REB1 | BLE5.1 | -97dbm@1Mbps | 4dbm | 32-bit RISC MCU | 3.63V~1.62V | 128KB | 512KB | 20 | 5?channels?10-bit?ADC | NULL |
| EB5REB1 | BLE5.0 | -102dbm@125kbps | 4dbm | 32-bit RISC MCU | 3.63V~1.62V | 128KB | 512KB | 20 | 5?channels?10-bit?ADC | NULL |
| CSR1020 | BLE5.0 | -92dbm@1Mbps | 4dbm | 8051 | 3.6V~1.8V | 8KB | 128KB/256KB | 21 | 8?channels?12-bit?ADC | NULL |
| nRF52832 | BLE5.0 | 96dbm@1Mbps | 4dbm | 32-bit Cortex-M4 | 3.6V~1.7V | 64KB/32KB | 256Kb/512KB | 12 | 8?channels?12-bit?ADC | NULL |
| DA14586 | BLE5.0 | 93dbm@1Mbps | 0.-20dBm | 32-bit Cortex-M0 | 3.6V~2.3V | 96KB | 2MB(SIP) | 24 | 4?channels?10-bit?ADC | NULL |
| CC2640R2F | BLE5.0 | 97dbm@1Mbps | 5.0dbm | 32-bit Cortex-M3 | 3.6V~1.8V | 28KB | 128KB | 10/14/15/31 | 8?channels?12-bit?ADC | NULL |
