      Home ? Product Center ? Other ? Switch ? Tactile Switch ? RTR-8 ?










        The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

      The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.













      Dust-proof Tactile Switches RTR-8










      •  Rating：12VDC 50mA


      •  Travel：1.5±0.3mm


      •  Life：50,000 cycles


      •  Contact Resistance：100mΩ MAX Initial


      •  Insulation Resistance：100mΩ min. 100VDC


      •  Dielectric Strength：250VAC(50/60Hz)FOR 1MIN


      •  Operating Force：120±40gf


      •  Waterproof Grade：IP6X

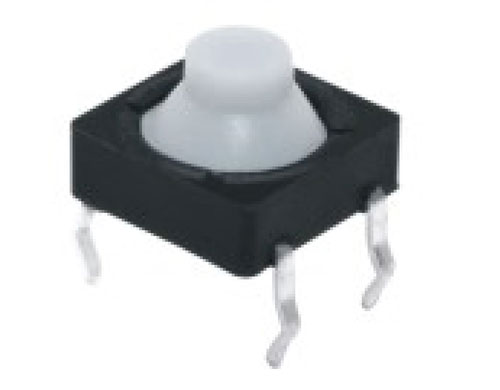

	  Dust-proof Tactile Switches RTR-8 Figure

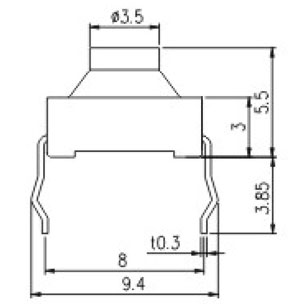

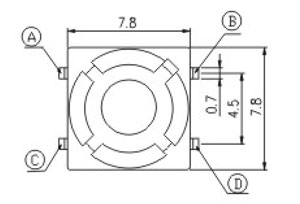

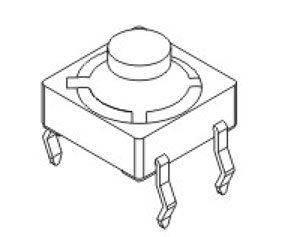

	Tactile Switches Structure Diagram RTR-8 Switch RTR-8 Structure Diagram     Dust-proof Switch RTR-8 Structure Diagram


















                                Part Number
                                Rating
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Operating Force
                                Travel
                                Life
                                Waterproof Grade
                                Download




                                RTR-8C-G-V-B
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                120±40gf
                                1.5±0.3mm
                                50,000 cycles
                                IP6X

                    NULL




                                RTR-8T-G-V-B
                                12VDC 50mA
                                100mΩ MAX Initial
                                100mΩ min. 100VDC
                                250VAC(50/60Hz)FOR 1MIN
                                120±40gf
                                1.5±0.3mm
                                50,000 cycles
                                IP6X

                    NULL
