      Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R0193 ?














      The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.













      Illuminated Push Button Switches R0193










      •  Rating：0.1A 30VDC


      •  Contact Resistance：100mΩ Max


      •  Insulation Resistance：DC 500V 100MΩ Min


      •  Dielectric Strength：AC 250V for 1 minute


      •  Operation Force：200±50gf


      •  Operation Temperation：10℃ ~60℃


      •  Total Travel：2.5±0.4mm


      •  Operation Life：50,000 cycles

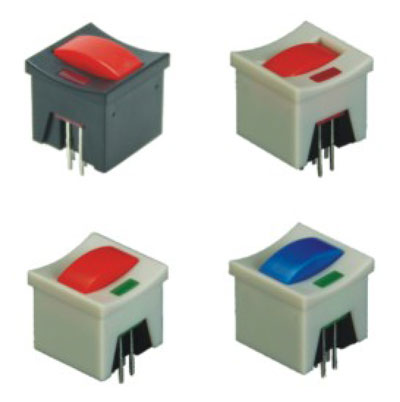

	Illuminated Push Button Switches R0193 Figure

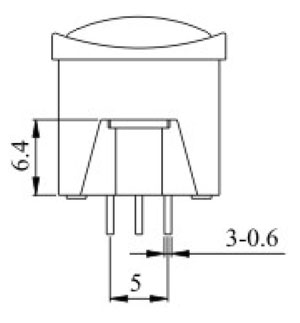

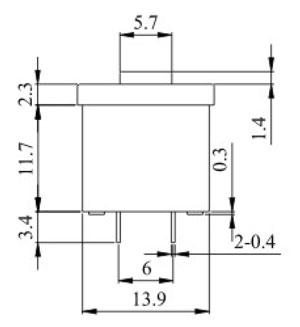

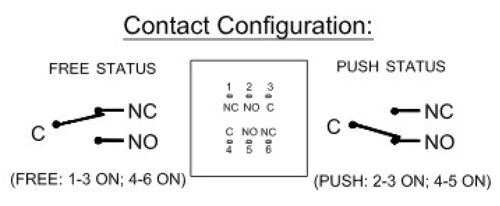

	     Illuminated Push Button Switches R0193 Structure Diagram      Switch R0193 Structure Diagram      R0193 Structure Diagram


















                                Part Number
                                Rating
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Operation Force
                                Operation Temperation
                                Total Travel
                                Operation Life
                                Download




                                R0193-UA-LN2
                                0.1A 30VDC
                                100mΩ Max
                                DC 500V 100MΩ Min
                                AC 250V for 1 minute
                                200±50gf
                                10℃ ~60℃
                                2.5±0.4mm
                                50,000 cycles

                    NULL




                                R0193-RB-NR
                                0.1A 30VDC
                                100mΩ Max
                                DC 500V 100MΩ Min
                                AC 250V for 1 minute
                                200±50gf
                                10℃ ~60℃
                                2.5±0.4mm
                                50,000 cycles

                    NULL




                                R0193-RA-LN1
                                0.1A 30VDC
                                100mΩ Max
                                DC 500V 100MΩ Min
                                AC 250V for 1 minute
                                200±50gf
                                10℃ ~60℃
                                2.5±0.4mm
                                50,000 cycles

                    NULL
