      Home ? Product Center ? Other ? Switch ? Push_button Switch ? R0191 ?










        The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.

      The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.













      Push_Button Switches R0191










      •  Rating：3A 125VAC;1.5A 250VAC


      •  Contact Resistance：50mΩ Max


      •  Insulation Resistance：DC 500V 100MΩ Min


      •  Dielectric Strength：AC 1000V 1 minute


      •  Operation Force：200±50gf


      •  Total Travel：1.4±0.4mm


      •  Operation Life：10,000 cycles


      •  Operation Temperation：0℃ ~+85℃

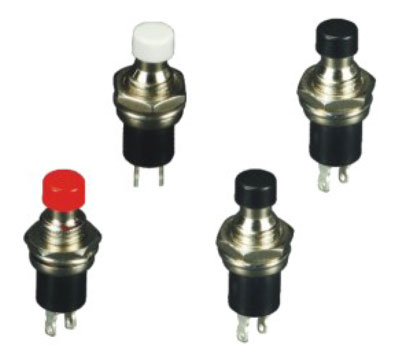

	 Push_Button Switches R0191 Figure

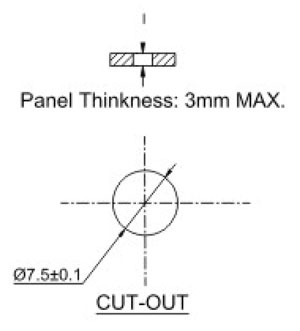

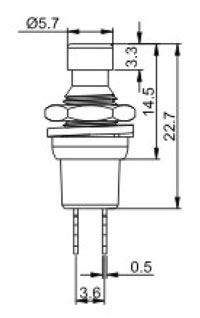

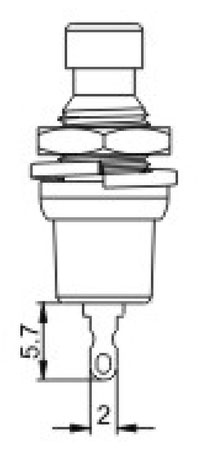

	Push_Button Switches R0191 Structure Diagram                  Switch R0191 Structure Diagram               R0191 Structure Diagram


















                                Part Number
                                Rating
                                Contact Resistance
                                Insulation Resistance
                                Dielectric Strength
                                Operation Force
                                Total Travel
                                Operation Life
                                Operation Temperation
                                Download




                                R0191-A-R
                                3A 125VAC;1.5A 250VAC
                                50mΩ Max
                                DC 500V 100MΩ Min
                                AC 1000V 1 minute
                                200±50gf
                                1.4±0.4mm
                                10,000 cycles
                                0℃ ~+85℃

                    NULL




                                R0191-B-B
                                3A 125VAC;1.5A 250VAC
                                50mΩ Max
                                DC 500V 100MΩ Min
                                AC 1000V 1 minute
                                200±50gf
                                1.4±0.4mm
                                10,000 cycles
                                0℃ ~+85℃

                    NULL




                                R0191-B1-W
                                3A 125VAC;1.5A 250VAC
                                50mΩ Max
                                DC 500V 100MΩ Min
                                AC 1000V 1 minute
                                200±50gf
                                1.4±0.4mm
                                10,000 cycles
                                0℃ ~+85℃

                    NULL



















		Open
