      Home ? Product Center ? Other ? Switch ? Push_button Switch ? REPG ?
      The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.
      The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.
      Key Switches REPG

      •  Rating:DC 30V 0.1A
      •  Initial Contact Resistance:20mΩ Max
      •  Insulation Resistance:DC 500V 60 Sec.100MΩ Min.
      •  Dielectric Voltage:AC 500V(50~60HZ)60 Sec
      •  Tactile Travel:1.8mm
      •  Total Travel:3.6-4.0mm
      •  Work Travel:2.2±0.6mm

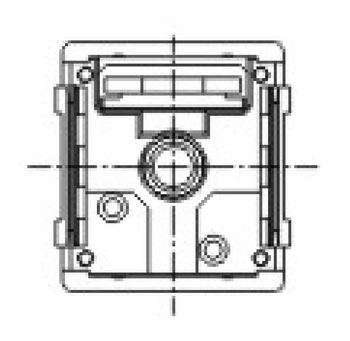

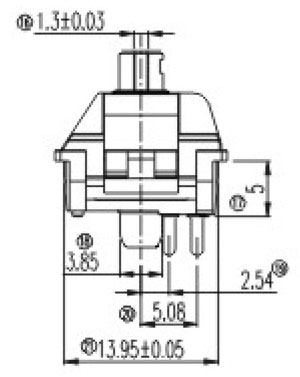

      Key Switches REPG Structure Diagram       Switch REPG Structure Diagram       REPG Structure Diagram       REPG



      Part Number Rating Initial Contact Resistance Insulation Resistance Dielectric Voltage Tactile Travel Total Travel Work Travel Download
      REPG150B02P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
      REPG150Q30P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
      REPG150R02P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
      REPG150T02P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
      REPG150W03P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
      REPG150W05P DC 30V 0.1A 20mΩ Max DC 500V 60 Sec.100MΩ Min. AC 500V(50~60HZ)60 Sec 1.8mm 3.6-4.0mm 2.2±0.6mm NULL
