Notice

Home ? Product Center ? Other ? Switch ? Push_button Switch ? RPS ?

The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.

The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.

Illuminated Push Button Switches RPS

• Rating：30VDC 0.1A

• Contact Resistance：50mΩ Max

• Insulation Resistance：100MΩ Min(250VDC)

• Dielectric Strength：250VAC（50/60Hz for 1 min）

• Operating Force：160±80g

• Electrically Life：100,000 cycles

• Operating Temperation Range：-20℃~+70℃

• Operating Mode：A：Self-Lock B：Non-Lock

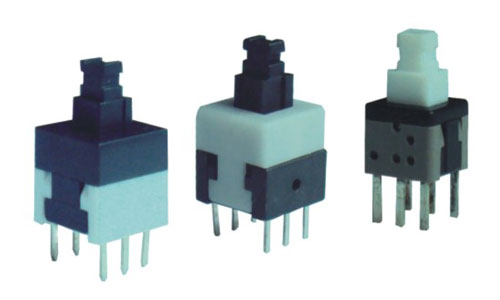

Illuminated Push Button Switches RPS Figure

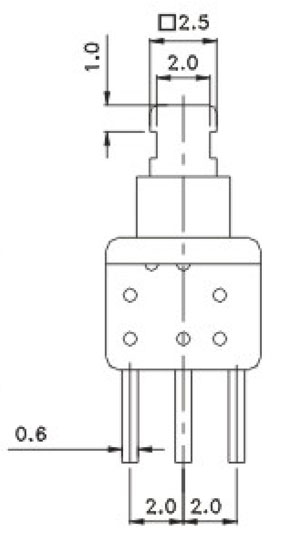

Illuminated Push Button Switches RPS Structure Diagram

Switch RPS Structure Diagram

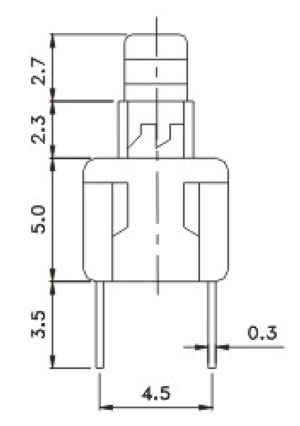

RPS Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Electrically Life	Operating Temp.	Operating Mode	Download
RPS58A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS58B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS581A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS581B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS582A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS582B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS60A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS60B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70A-1(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS70B-1	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS80A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS80B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS851A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS851B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS852A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS852B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS8513A(Self-lock)	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
RPS8513B	30VDC 0.1A	50mΩ Max	100MΩ Min(250VDC)	250VAC 50/60Hz for 1 min	160±80g	100,000 cycles	-20℃~+70℃	A:Self-Lock B:Non-Lock	NULL
